MHS8203 Modular Horizontal Screen

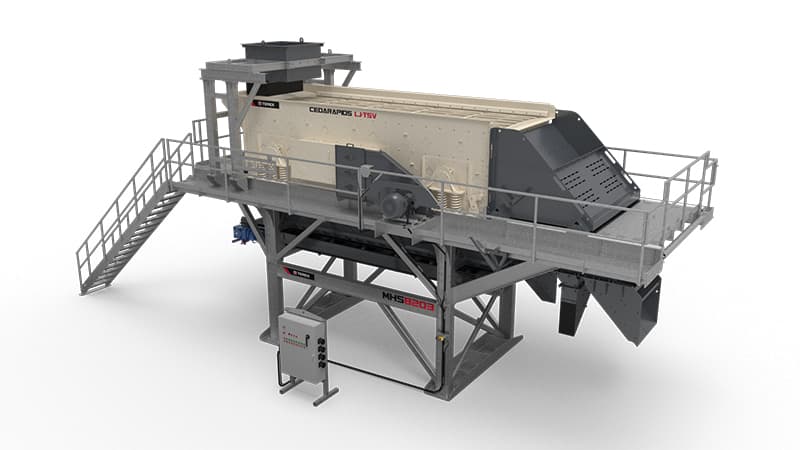

The Cedarapids MHS8203 Modular Horizontal Screen is a high capacity screening solution designed for efficiency and ease of use. It features the industry renowned TSV Series Triple Shaft Horizontal Screen with oval stroke action. This modular screening solution is ideal for operators looking for a reliable, high performance system that is easy to install and maintain. The MHS8203 Screen Module is equipped with a large 8' x 20' (2438mm x 6096mm) triple shaft screen, providing exceptional capacity and performance. The oval stroke technology enhances screening efficiency, ensuring optimal material separation. Setup time and operation are simplified through the modular design, which allows all modular crushers and screens to bolt together on site with minimal wiring. Designed with logistics in mind, the MHS8203 ships efficiently in two 40' shipping containers plus the screen, reducing transportation complexity and costs.
Product Features
What Comes on the MHS8203
- Galvanized steel structure including walkways, stairs and guard rails
- Feed box and support structure for dry screening: rock box style material feed box allows for the conveyor to feed from either side or over the back of the screen
- Roll away blending chute
- 8' x 20' horizontal screen
- Minimal on site wiring
- E stops located for easy access on both upper deck and ground

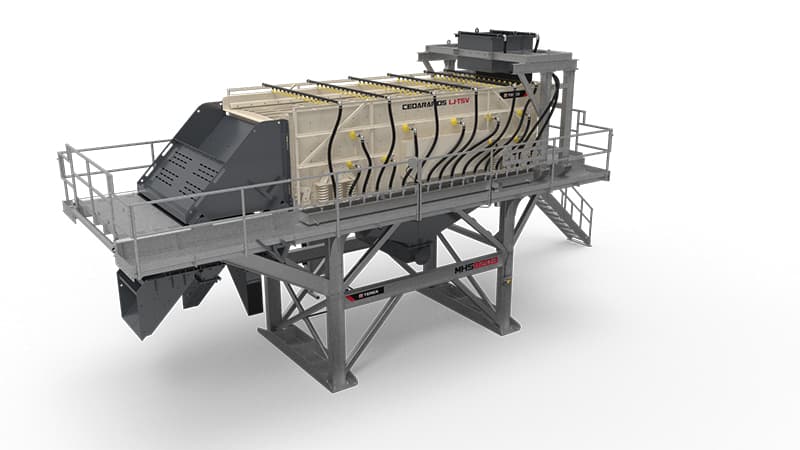

- Optional: Wash plant feed box with two spray bars and support structure, screen spray system with manifold and under screen flume
Videos
See the MHS8203 in Action
Technical Documentation
MHS8203 Specifications
- Measurements
- Number of Decks
- 33
- Motor Size
- 50 hp37 kW
- Weight
- 60,000 lbs27,215 kg
- Working Dimensions
- 48' 7" x 15' 9" x 18' 4"14,802 x 4,800 x 5,584 mm
