Cedarapids
MC1000
- Capacity
- 180 to 228 tph198 to 251 mtph
- Motor Size
- 250 hp185 kW
- Weight
- 40,785 lbs18,500 kg
- Working Dimensions
- 21' 11" x 23' 1" x 15' 1"6,688 x 7,044 x 4,596 mm
Cedarapids Modular
Modular Cone Crushers
High productivity, efficiency and long term value on a universal modular platform built to grow with your operation.
Built In Features
Upgrade Without Starting Over
Cedarapids modular cone crushers deliver high productivity, efficiency and long term value. Each one is built on a universal modular platform with structures that are engineered and assembled before they ship.
Because the platform is universal, you can upgrade to a new chamber without replacing the entire frame. That means less downtime, easier scaling and a plant that keeps pace with your production goals. Excel Machinery backs every module with parts, service and field support.
- Universal PlatformOne modular frame shared across the cone lineup.
- Quick Chamber UpgradesSwap chambers without replacing the entire structure.
- Minimal DowntimeFaster changes keep your plant producing.
- Scalable DesignGrow capacity as your operation grows.
Model Lineup
Explore the Cone Crusher Modules
Six models with capacities from 180 to 457 tph for secondary and tertiary crushing in any modular plant.
Cedarapids
MC1150
- Capacity
- 280 to 327 tph308 to 360 mtph
- Motor Size
- 300 hp225 kW
- Weight
- 52,510 lbs23,654 kg
- Working Dimensions
- 21' 11" x 23' 1" x 14' 10"6,688 x 7,044 x 4,527 mm
Cedarapids

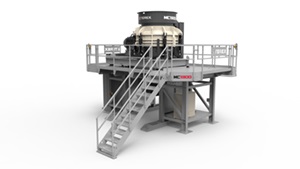

MC1300
- Max Capacity
- 388 to 457 tph352 to 415 mtph
- Motor Size
- 300 hp225 kW
- Weight
- 66,140 lbs30,000 kg
- Working Dimensions
- 21' 11" x 23' 1" x 16' 1"6,688 x 7,044 x 4,904 mm
Cedarapids
MC320
- Capacity
- 419 to 452 tph380 to 410 mtph
- Motor Size
- 300 hp225 kW
- Weight
- 61,510 lbs27,900 kg
- Working Dimensions
- 21' 11" x 14' 7" x 14' 10"6,688 x 4,448 x 4,819 mm
Cedarapids
MC380X
- Capacity
- 295 to 380 tph268 to 345 mtph
- Motor Size
- 300 hp225 kW
- Weight
- 69,900 lbs31,706 kg
- Working Dimensions
- 21' 11" x 23' 1" x 19' 9"6,688 x 7,044 x 6,031 mm
Cedarapids
MC450X
- Capacity
- 355 to 450 tph321 to 408 mtph
- Motor Size
- 400 hp300 kW
- Weight
- 75,500 lbs34,246 kg
- Working Dimensions
- 21' 11" x 23' 1" x 19' 9"6,688 x 7,044 x 6,031 mm
Need Help Choosing the Right Cone Crusher
Our team will help you size a Cedarapids cone module to your material, your production goals and your site.
