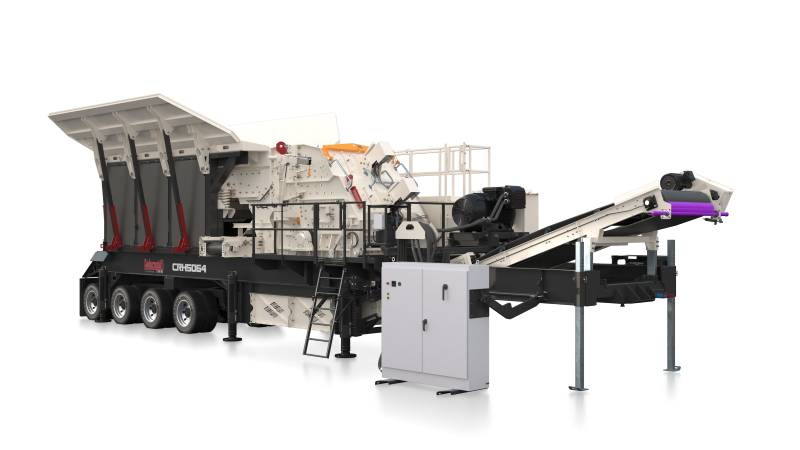

Cedarapids
CRH5064
- Axles
- 44
- Weight
- 112,300 lbs50,938 kg
- Transport Dimensions
- 56' 4" x 13' 10" x 11' 11"17,170 x 4,064 x 3,632 mm
- Working Dimensions
- 56' 4" x 14' 11" x 15' 4"17,170 x 4,369 x 4,674 mm
Cedarapids Portable
Portable HSI Crushers
Horizontal shaft impact plants built for flexible, durable primary, secondary and tertiary crushing in large scale operations.
Built In Features
Impact Crushing Built for Big Jobs
Cedarapids portable horizontal shaft impact crushers are engineered for tough primary, secondary and tertiary crushing applications that call for flexibility and durability.
Built for large scale operations and high capacity performance, the horizontal shaft impactor mobile plant is an ideal choice for demanding applications. Excel Machinery backs every plant with parts, service and field support.
- Every Crushing StagePrimary, secondary and tertiary applications.
- Built to LastDurable construction for demanding work.
- High CapacityPerformance sized for large scale operations.
- Mobile PlantThree and four axle plants that travel easily.
Model Lineup
Explore the Portable HSI Plants
Three portable horizontal shaft impact plants for flexible, high capacity crushing.
Cedarapids
CRH1111R
- Axles
- 33
- Capacity
- 200 tph150 mtph
- Weight
- 94,006 lbs42,460 kg
- Transport Dimensions
- 69' x 11' 10" x 13' 5"21,031 x 3,607 x 4,089 mm
- Working Dimensions
- 68' 10" x 18' 11" x 16' 6"20,980 x 5,766 x 5,029 mm
Cedarapids
CRH1113R
- Axles
- 44
- Capacity
- 300 tph225 mtph
- Weight
- 133,485 lbs60,535 kg
- Transport Dimensions
- 75' 11" x 11' 11" x 13' 11"23,140 x 3,632 x 4,240 mm
- Working Dimensions
- 74' 4" x 14' x 18' 10"22,660 x 4,267 x 5,740 mm
Need Help Choosing the Right HSI Plant
Our team will help you size a Cedarapids portable HSI plant to your material, your production goals and your job sites.
