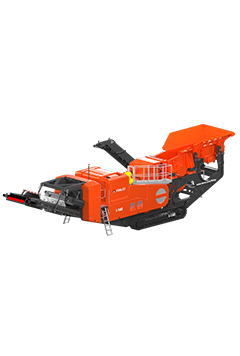

Finlay
I140
- Output Potential
- 551 US tph500 tph
- Rotor Size
- Ø50" x 48"Ø1,270mm x 1,220mm
- Weight
- 111,818 lbs with options50,720 kg with options
Finlay Crushers
Tracked Impact Crushers
Horizontal impact crushers for quarrying, mining, demolition and recycling, with recirculating screen models for finished product.
Built In Features
High Reduction from One Machine
Finlay tracked impact crushers combine a powerful rotor with a robust feeding system to deliver high reduction ratios and a consistent product. RS models add an onboard screen and return conveyor, so oversize material is recirculated and a sized product is produced on the spot.
They handle quarry rock, concrete, asphalt and mixed demolition waste with equal confidence. Excel Machinery backs every Finlay impact crusher with parts, service and field support.
- Powerful RotorsHigh reduction ratios in one pass.
- Recirculating RS ModelsOnboard screen and return conveyor.
- Recycling ReadyConcrete, asphalt and demolition waste.
- Tracked MobilityFast setup on every site.
Model Lineup
Explore the Impact Crusher Range
8 models with key specifications. Switch between Imperial and Metric, then open any model for full details.

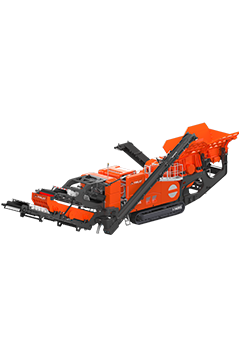

Finlay
I140RS
- Output Potential
- 551 US tph500 tph
- Rotor Size
- Ø50" x 48"Ø1,270mm x 1,220mm
- Weight
- 166,449 lbs with options75,500 kg with options
Finlay
I130RS
- Output Potential
- 529 US tph480 tph
- Rotor Size
- Ø42" x 49"Ø1,065mm x 1,065mm
- Weight
- 137,788 lbs62,500 Kgs
Finlay
I130
- Output Potential
- 529 US tph480 tph
- Rotor Size
- Ø42" × 49"Ø1,065mm x 1,065mm
- Weight
- 91,293 lbs with options41,410 kg with options

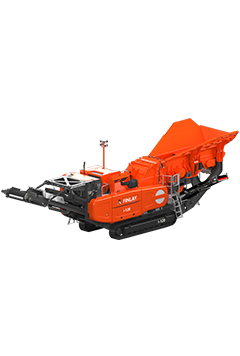

Finlay
I120
- Output Potential
- 441 US tph400 tph
- Rotor Size
- Ø41" x 44"Ø1,033mm x 1,100mm
- Weight
- 88,074 lbs with options39,950 kg with options

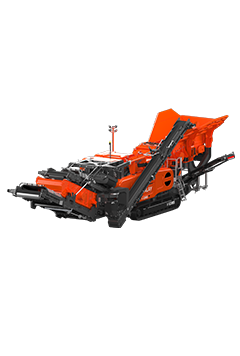

Finlay
I120RS
- Output Potential
- 441 US tph400 tph
- Rotor Size
- Ø41" x 44"Ø1,033mm x 1,100mm
- Weight
- 118,011 lbs with options53,529 kg with options

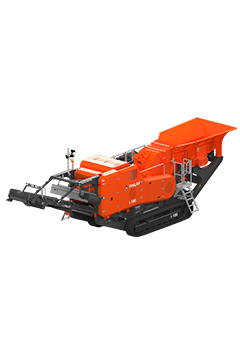

Finlay
I100
- Output Potential
- 276 US tph250 tph
- Rotor Size
- Ø34" x 33"Ø860mm x 830mm
- Weight
- 57,761 lbs with options26,200 kg with options

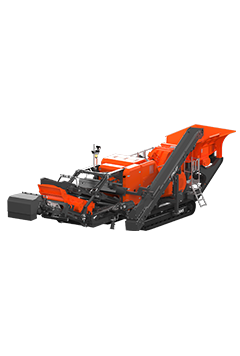

Finlay
I100RS
- Output Potential
- 276 US tph250 tph
- Rotor Size
- Ø34" x 33"Ø860mm x 830mm
- Weight
- 73,413 lbs with options33,300 kg with options
Need Help Choosing an Impact Crusher
Our team will match a Finlay impact crusher to your feed material, your product size and your site.
