Cedarapids
TC1000
- Capacity
- 75 to 240 tph70 to 200 mtph
- CSS Range
- 5/8" to 1 1/2"16 to 36 mm
- Head Diameter
- 40 inches1,000 mm
- Motor Size
- 230 hp170 kW
- Weight
- 22,040 lbs10,000 kg
Cedarapids Static
Static Cone Crushers
Excellent reduction and product cubicity, with a low profile design and advanced hydraulics for reliable, easy to manage performance.
Built In Features
Better Shape With Less Effort
The Cedarapids static cone crusher lineup delivers excellent reduction and product cubicity. Robust construction and a low profile design let these crushers fit into tight spaces without giving up performance.
Advanced hydraulics make setting adjustment easy and provide overload protection for reliable performance in demanding applications. Excel Machinery backs every machine with parts, service and field support.
- Excellent ReductionStrong, consistent size reduction.
- Cubical ProductWell shaped material that meets spec.
- Low Profile DesignFits easily into tight plant layouts.
- Advanced HydraulicsEasy setting changes and overload protection.
Model Lineup
Explore the Static Cone Crushers
Seventeen cone crushers across four series, from 75 tph up to more than 2,500 tph.
TC Series
Cedarapids
TC1150
- Capacity
- 165 to 320 tph150 to 290 mtph
- CSS Range
- 5/8" to 1 9/16"16 to 40 mm
- Head Diameter
- 45 inches1,150 mm
- Motor Size
- 300 hp225 kW
- Weight
- 31,360 lbs14,000 kg
Cedarapids

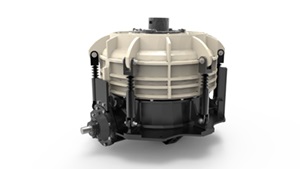

TC1300
- Capacity
- 180 to 350 tph165 to 320 mtph
- CSS Range
- 7/8" to 1 51/64"22 to 45 mm
- Head Diameter
- 51 inches1,300 mm
- Motor Size
- 300 hp225 kW
- Weight
- 48,500 lbs22,000 kg
Cedarapids

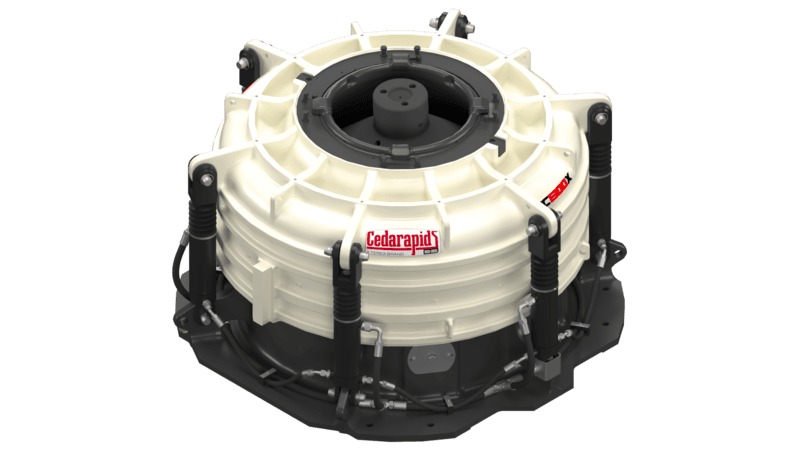

TC1300X
- Capacity
- 325 to 375 tph295 to 340 mtph
- Head Diameter
- 52 inches1,300 mm
- Motor Size
- 400 hp300 kW
- Weight
- 39,917 lbs18,106 kg
TG Series
Cedarapids

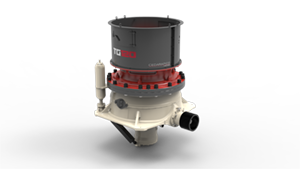

TG120
- Max Capacity
- 121 to 143 tph110 to 130 mtph
- CSS Range
- 1/4" to 1 1/8"6 to 29 mm
- Max Feed Size
- 5 inches125 mm
- Motor Size
- 120 hp90 kW
- Weight
- 12,125 lbs5,500 kg
Cedarapids
TG220
- Max Capacity
- 215 to 237 tph195 to 215 mtph
- CSS Range
- 1/4" to 1 1/4"6 to 32 mm
- Max Feed Size
- 6.5 inches165 mm
- Motor Size
- 215 hp160 kW
- Weight
- 20,944 lbs9,500 kg
Cedarapids
TG320
- Max Capacity
- 419 to 452 tph380 to 410 mtph
- CSS Range
- 5/16" to 1 1/2"8 to 38 mm
- Max Feed Size
- 7.5 inches190 mm
- Motor Size
- 335 hp250 kW
- Weight
- 33,069 lbs15,000 kg
Cedarapids
TG420
- Max Capacity
- 705 to 750 tph640 to 680 mtph
- CSS Range
- 1/2" to 1 3/4"13 to 44 mm
- Max Feed Size
- 9.4375 inches240 mm
- Motor Size
- 400 hp315 kW
- Weight
- 55,556 lbs25,200 kg
Cedarapids
TG820
- Max Capacity
- 1,543 to 1,709 tph1,400 to 1,550 mtph
- CSS Range
- 1/2" to 2 1/2"13 to 64 mm
- Max Feed Size
- 1' 5/8"320 mm
- Motor Size
- 805 hp600 kW
- Weight
- 110,321 lbs50,000 kg
Cedarapids
TG1020
- Max Capacity
- 2,315 to 2,535 tph2,100 to 2,300 mtph
- CSS Range
- 1/2" to 2 3/4"13 to 70 mm
- Max Feed Size
- 1' 2"355 mm
- Motor Size
- 1,006 hp750 kW
- Weight
- 169,756 lbs77,000 kg
TGS Series
Cedarapids
TGS120
- Max Capacity
- 146 to 158 tph132 to 143 mtph
- CSS Range
- 3/8" to 1 3/8"9 to 35 mm
- Max Feed Size
- 7.5 inches190 mm
- Motor Size
- 120 hp90 kW
- Weight
- 15,102 lbs6,850 kg
Cedarapids
TGS220
- Max Capacity
- 358 to 379 tph325 to 344 mtph
- CSS Range
- 3/4" to 1 3/8"19 to 35 mm
- Max Feed Size
- 10.8125 inches275 mm
- Motor Size
- 215 hp160 kW
- Weight
- 26,676 lbs12,100 kg
Cedarapids
TGS320
- Max Capacity
- 634 to 662 tph575 to 601 mtph
- CSS Range
- 1 1/8" to 1 7/8"29 to 48 mm
- Max Feed Size
- 1' 1"330 mm
- Motor Size
- 335 hp250 kW
- Weight
- 42,990 lbs19,500 kg
Cedarapids

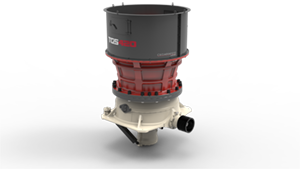

TGS420
- Max Capacity
- 1,102 to 1,157 tph1,000 to 1,050 mtph
- CSS Range
- 1 1/2" to 2 3/4"38 to 70 mm
- Max Feed Size
- 1' 3 3/16"385 mm
- Motor Size
- 422 hp315 kW
- Weight
- 80,469 lbs36,500 kg
MVP Series
Cedarapids

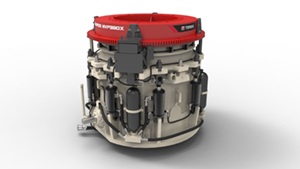

MVP380X
- Capacity
- 170 to 560 tph155 to 507 mtph
- CSS Range
- 3/8" to 2"10 to 51 mm
- Head Diameter
- 48 inches1,219 mm
- Motor Size
- 300 hp225 kW
- Weight
- 46,000 lbs20,800 kg
Cedarapids

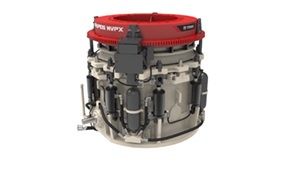

MVP450X
- Capacity
- 200 to 645 tph182 to 585 mtph
- CSS Range
- 3/8" to 2"10 to 51 mm
- Head Diameter
- 54 inches1,372 mm
- Motor Size
- 400 hp300 kW
- Weight
- 52,500 lbs23,800 kg
Cedarapids
MVP550X
- Capacity
- 250 to 810 tph228 to 737 mtph
- CSS Range
- 3/8" to 2"10 to 51 mm
- Head Diameter
- 60 inches1,524 mm
- Motor Size
- 500 hp375 kW
- Weight
- 68,000 lbs30,800 kg
Need Help Choosing the Right Cone Crusher
Our team will help you size a Cedarapids cone crusher to your material, your production goals and your plant.
