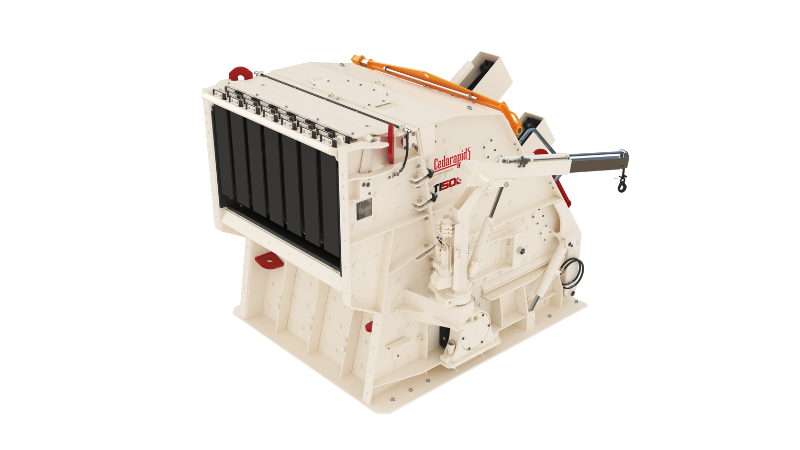

Cedarapids
TI5064
- Capacity
- 250 to 550 tph227 to 499 mtph
- Max Feed Size
- 30"750 mm
- Motor Size
- 450 hp335 kW
- Rotor Dimensions
- 50" x 64"1,270 x 1,626 mm
- Weight
- 43,000 lbs19,500 kg
Cedarapids Static
Static HSI Crushers
Horizontal shaft impact crushers with large feed openings, heavy duty aprons and rugged rotors built for big feed and high capacity.
Built In Features
Big Feed and High Capacity
Cedarapids horizontal shaft impact crushers feature large feed openings, heavy duty aprons and rugged rotors.
They are built to handle big feed sizes and deliver high capacity crushing performance in demanding applications, including concrete recycling. Excel Machinery backs every machine with parts, service and field support.
- Large Feed OpeningsAccept big rock and recycled slabs.
- Heavy Duty ApronsBuilt to stand up to constant impact.
- Rugged RotorsDurable rotors for long service life.
- High CapacityCapacities that reach up to 800 tph.
Model Lineup
Explore the Static HSI Crushers
Four horizontal shaft impact crushers with capacities up to 800 tph.
Cedarapids
TI4250
- Capacity
- 529 tph480 mtph
- Max Feed Size
- 18" cubed rock or 31" x 20" x 10" concrete slab450 mm cubed rock or 800 x 500 x 250 mm concrete slab
- Motor Size
- 240 hp180 kW
- Rotor Dimensions
- 42" x 50"1,065 x 1,270 mm
- Weight
- 27,397 lbs12,453 kg
Cedarapids
TI4143
- Capacity
- 90 to 300 tph80 to 270 mtph
- Max Feed Size
- 19" cubed rock or 4" x 18" x 36" recycle slab480 mm cubed rock or 100 x 450 x 900 mm recycle slab
- Motor Size
- 180 hp130 kW
- Rotor Dimensions
- 41" x 43"1,035 x 1,100 mm
- Weight
- 21,915 lbs9,940 kg
Cedarapids
IP1516
- Capacity
- 600 to 800 tph545 to 725 mtph
- Max Feed Size
- 34 inches265 mm
- Motor Size
- 600 hp450 kW
- Rotor Dimensions
- 61" x 64"1,550 x 1,625 mm
- Weight
- 55,700 lbs25,260 kg
Need Help Choosing the Right Impactor
Our team will help you size a Cedarapids impact crusher to your material, your production goals and your plant.
