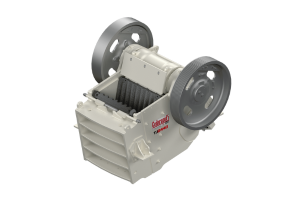

Cedarapids
TJ2440
- Capacity
- 220 to 320 tph200 to 290 mtph
- CSS Range
- 1.6" to 5.7"40 to 146 mm
- Feed Opening
- 24" x 40"600 x 1,000 mm
- Motor Size
- 150 hp110 kW
- Weight
- 26,914 lbs12,208 kg
Cedarapids Static
Static Jaw Crushers
Single toggle jaw crushers built for mining, quarrying and recycling, with deep chambers and aggressive crushing action.
Built In Features
Deep Chambers and Aggressive Crushing
Cedarapids single toggle jaw crushers are ideal for mining, quarrying and recycling. They deliver high productivity through a deep jaw design and aggressive crushing action.
Full hydraulic CSS adjustment makes setting changes simple, and a robust welded mainframe stands up to demanding work. Excel Machinery backs every machine with parts, service and field support.
- Deep Jaw DesignA deep chamber that takes on big feed.
- Aggressive Crushing ActionHigh productivity from every stroke.
- Hydraulic CSS AdjustmentChange the closed side setting with ease.
- Welded MainframeRobust construction built to last.
Model Lineup
Explore the Static Jaw Crushers
Six jaw crushers with capacities from 155 to 948 tph for primary crushing in permanent plants.

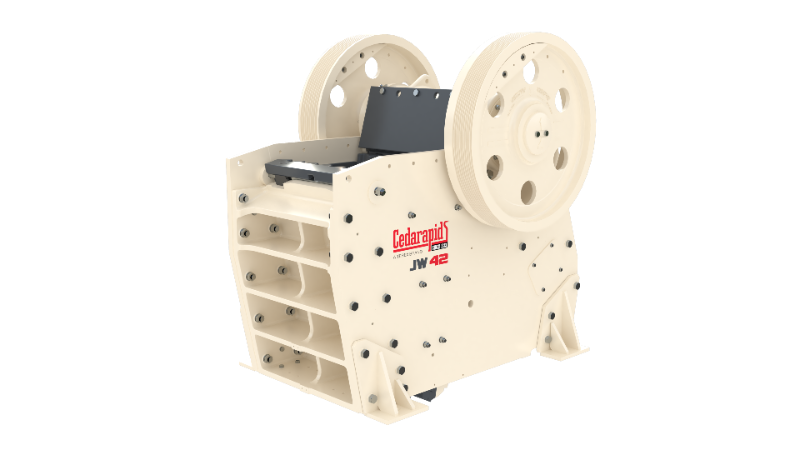

Cedarapids
JW42
- Capacity
- 155 to 480 tph135 to 430 mtph
- CSS Range
- 3" to 7"75 to 210 mm
- Feed Opening
- 30" x 42"760 x 1,070 mm
- Motor Size
- 150 hp110 kW
- Weight
- 39,100 lbs17,740 kg
Cedarapids
JW55
- Capacity
- 255 to 760 tph230 to 680 mtph
- CSS Range
- 3.5" to 9"85 to 225 mm
- Feed Opening
- 32" x 55"820 x 1,400 mm
- Motor Size
- 200 hp150 kW
- Weight
- 57,860 lbs26,250 kg

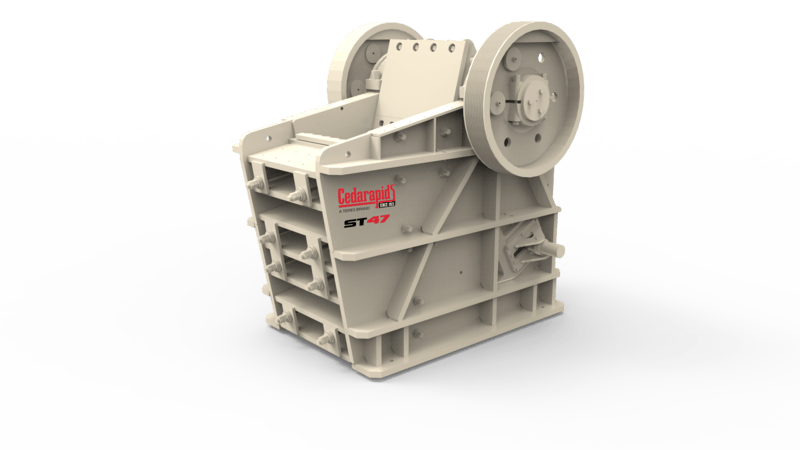

Cedarapids
ST47
- Capacity
- 209 to 590 tph190 to 535 mtph
- CSS Range
- 4" to 8"101 to 203 mm
- Feed Opening
- 36" x 48"915 x 1,220 mm
- Motor Size
- 200 hp150 kW
- Weight
- 88,800 lbs40,300 kg

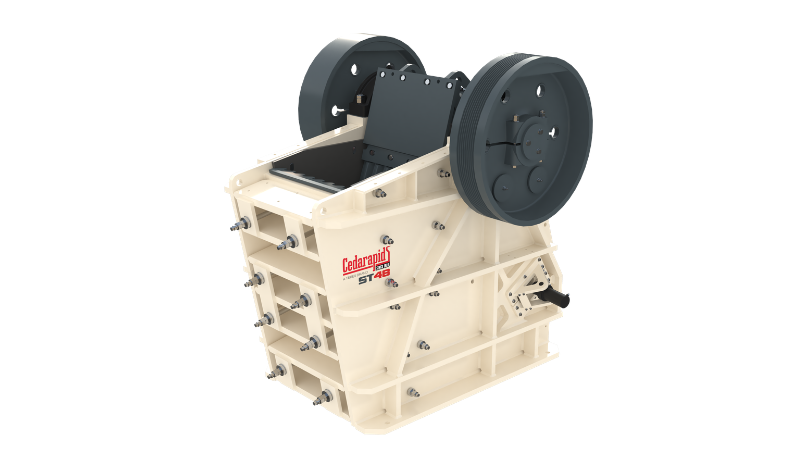

Cedarapids
ST48
- Capacity
- 314 to 804 tph285 to 729 mtph
- CSS Range
- 5" to 10"127 to 254 mm
- Feed Opening
- 42" x 48"1,065 x 1,220 mm
- Motor Size
- 250 hp185 kW
- Weight
- 104,900 lbs47,600 kg

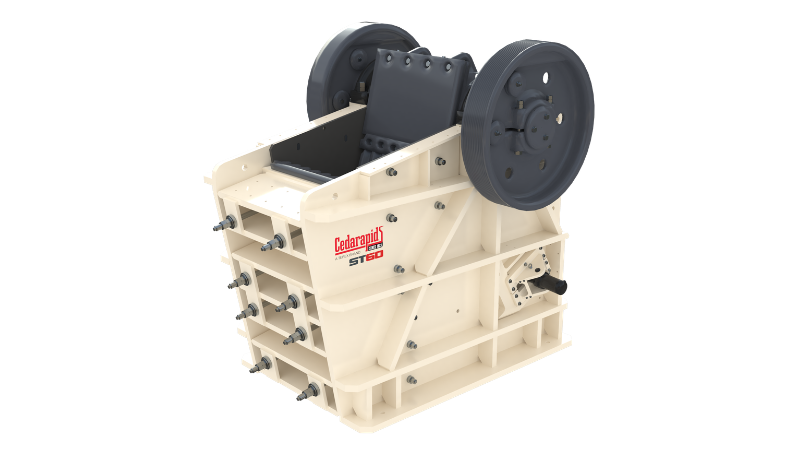

Cedarapids
ST60
- Capacity
- 475 to 948 tph431 to 860 mtph
- CSS Range
- 5.5" to 10"140 to 254 mm
- Feed Opening
- 50" x 60"1,275 x 1,500 mm
- Motor Size
- 350 hp250 kW
- Weight
- 186,800 lbs84,740 kg
Need Help Choosing the Right Jaw Crusher
Our team will help you size a Cedarapids jaw crusher to your material, your production goals and your plant.
